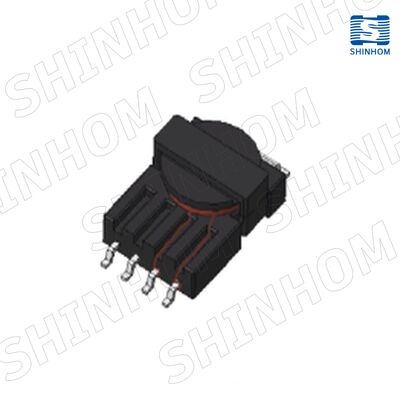

SMD Current Transformer ACSTER11.5 Series – High Isolation, Low DCR, Up to 50A
The ACSTER11.5 Series SMD Current Transformer is designed for high-performance current sensing in compact electronic systems. Featuring low DC resistance, high isolation voltage, and wide frequency range, this transformer ensures accurate current measurement and stable operation in demanding applications. With a compact surface-mount design, it is ideal for modern power electronics, industrial control systems, and high-frequency circuits.
Key Features
  • Very Low DC Resistance (DCR)
    Minimizes power loss and improves system efficiency
  • High Current Capability up to 50A
    Suitable for high-current sensing applications
  • Wide Frequency Range (20kHz to 1MHz)
    Supports high-frequency switching systems
  • High Isolation Voltage (5000Vdc)
    Ensures safety and reliability in critical environments
  • Compact SMD Package
    Space-saving design for PCB integration
  • Wide Operating Temperature (-40°C to +125°C)
    Stable performance in harsh environments
  • RoHS Compliant
    Meets international environmental standards
Technical Specifications
Parameter Value
Current Rating Up to 50A
Turns Ratio 1:30 to 1:200
Inductance Range 0.3mH - 17.5mH
DC Resistance (DCR) As low as 0.56mΩ
Frequency Range 20kHz - 1MHz
Isolation Voltage 5000Vdc
Voltage Range Up to 1000Vpk
Mounting Type SMD
Operating Temperature -40°C to +125°C
Product Advantages
High Efficiency with Low Power Loss
The low DCR design significantly reduces energy loss, improving overall system efficiency.
Reliable High-Voltage Isolation
With reinforced insulation and 5000Vdc isolation, the ACSTER11.5 Series provides enhanced safety for high-voltage applications.
Flexible Design Options
Multiple turns ratios (1:30 to 1:200) allow engineers to select the optimal configuration for different current sensing needs.
Compact and Easy Integration
The SMD structure simplifies PCB design and supports automated assembly processes.
Applications
  • Switching Power Supplies (SMPS)
  • Industrial Automation Systems
  • Energy Monitoring and Metering
  • Inverters and Power Converters
  • Electric Vehicles (EV) Power Systems
  • Telecommunication Equipment
Why Choose ACSTER11.5 Series?
  • High accuracy current sensing
  • Strong anti-interference capability
  • High isolation for safety-critical systems
  • Compact size for modern electronics
  • Reliable performance in high-frequency applications
Get a Quote
Looking for a high-performance SMD current transformer for your application? Contact us today for datasheets, pricing, and samples.
