Name: High Precision Rogowski Coil with 1A to 500kA Range and ±0.2% Linearity for Accurate AC Current Measurement
Brand: Shaanxi Shinhom Enterprise Co.,Ltd
SKU: SRC DATASHEET FEX ROGOWSKI COIL
Availability: InStock

امکانات گالری توضیحات محصول حالا حرف بزن

امکانات

مشخصات

دامنه فعلی: 1a تا 500ka

دقت: <0.5 ٪ (کالیبره شده)

خطی بودن: 0.2 ٪ از خواندن

پهنای باند: 1Hz تا 100kHz (-3dB)

دمای عملیاتی: -40 درجه سانتیگراد تا +80 درجه سانتیگراد

برجسته کردن:

1A to 500kA Range Rogowski Coil,<0.5% Accuracy Rogowski Coil,±0.2% Linearity Rogowski Coil

<0.5% Accuracy Rogowski Coil

±0.2% Linearity Rogowski Coil

اطلاعات اولیه

محل منبع: چین

نام تجاری: SHINHOM

گواهی: RoHS

شماره مدل: SRC DATASHEET FEX ROGOWSKI COIL

سند: SRC datasheet Flex Rogowski...l_.pdf

پرداخت

زمان تحویل: 2 ~ 8weeks

شرایط پرداخت: L/C ، T/T

گالری

High Precision Rogowski Coil with 1A to 500kA Range and ±0.2% Linearity for Accurate AC Current Measurement

توضیحات محصول

High Sensitivity Flexible Rogowski Coil for Advanced AC Current Measurement

Discover our High Sensitivity Flexible Rogowski Coil (SRC Series), an advanced flexible current transducer for precise AC current measurement from 1A to 500kA. Features high linearity, wide bandwidth, and safe operation. Ideal for power monitoring, harmonics analysis, and DC ripple measurement.

Key Features & Benefits

High Precision & Wide Dynamic Range: Achieve accurate AC current measurement from 1A to 100kA (up to 500kA max) with excellent linearity of ±0.2%. The calibrated version offers a remarkable accuracy of <0.5%.

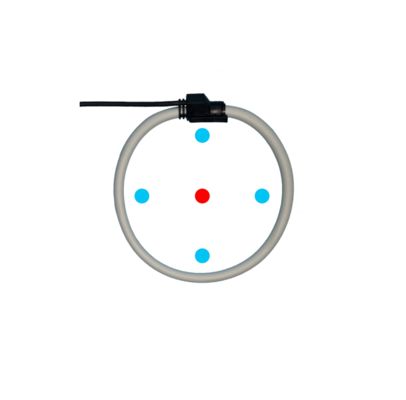

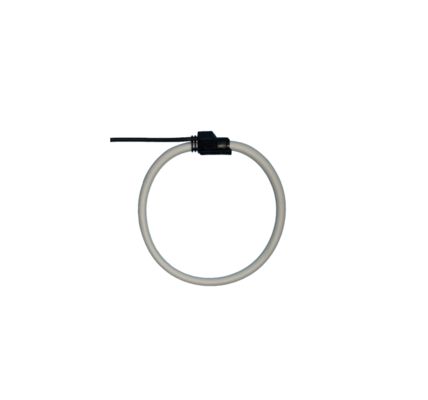

Ultra-Flexible & Non-Intrusive: Our flexible current transducer easily wraps around large, awkward, or fixed conductors (bus-bars, cables) in confined spaces. Its 12mm slim coil section and lightweight design make installation simple with cable ties.
Inherently Safe & Robust: Unlike traditional CTs, there is no danger from an open-circuited secondary. It does not saturate, even with massive overcurrents or short circuits. Rated for CAT III 1000V / CAT IV 600V and designed for demanding environments.
Broadband Performance: With a wide bandwidth of 1Hz to 100kHz (-3dB), it is perfect for analyzing harmonics, transients, and DC ripple measurement in applications like battery charging systems.
Integrated Shielding: An internal shield ensures stable measurements by rejecting interference from external magnetic fields, enhancing accuracy even at low primary currents.
Plug-and-Play Compatibility: This Rogowski coil can be directly connected to our DIN-RAIL and panel meters without an external Rogowski coil integrator, simplifying your system setup.

Technical Specifications (SRC Series)

Parameter	SRC-50	SRC-100	SRC-150
Coil Length	180 mm	380 mm	555 mm
Window Size (Diameter B)	50 mm	100 mm	150 mm
Coil Resistance	255 Ω (±10%)	375 Ω (±10%)	540 Ω (±10%)
Output Ratio (@50Hz)	Calibrated: 333 mV/kA Uncalibrated: 360 mV/kA	Calibrated: 333 mV/kA Uncalibrated: 360 mV/kA	Calibrated: 333 mV/kA Uncalibrated: 360 mV/kA
Accuracy (@25°C)	Calibrated: < 0.5% Uncalibrated: < 5%	Calibrated: < 0.5% Uncalibrated: < 5%	Calibrated: < 0.5% Uncalibrated: < 5%
Max. Measurable Current	500 kA	500 kA	500 kA
Bandwidth	1 Hz - 100 kHz (-3dB)	1 Hz - 100 kHz (-3dB)	1 Hz - 100 kHz (-3dB)
Phase Error	≤ 0.5°	≤ 0.5°	≤ 0.5°
Lead Cable Length	2 meters (Standard, customizable up to 20m)	2 meters (Standard, customizable up to 20m)	2 meters (Standard, customizable up to 20m)
Operating Temperature	-40°C to +80°C	-40°C to +80°C	-40°C to +80°C

General Specifications

Linearity: ±0.2% of reading
Position Error: ±1% maximum
Zero Drift (Output on OA): ≤ 0.05 mV
Safety Standards: CE Marked, complies with EN 61010-1:2010 (LVD) & EN 61326-1:2013 (EMC)
Insulation Voltage: Coil: 2000V; Signal Cable: 1000V
Material: Flame-retardant Thermoplastic Rubber (UL 94 V-0)

Typical Applications

Power Quality Analyzers and AC Current Measurement Devices
Energy Management and Power Monitoring Systems
Harmonics and Transients Analysis
DC Ripple Measurement in Battery and UPS Systems
Laboratory Instrumentation and Portable Meters
Motor Drive and Variable Frequency Drive (VFD) Current Monitoring

Why Choose Us?
As a professional electronic component exporter, we guarantee product quality, provide technical support, and ensure reliable global shipping. Contact us today for a competitive quotation and datasheet.
