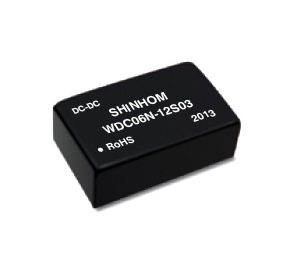

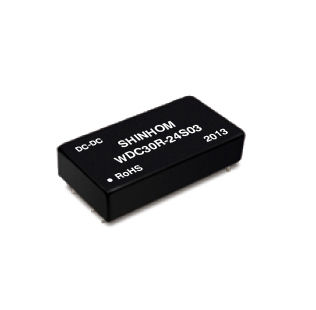

Compact DC DC Converter With Wide Input Voltage Range And Short Circuit

Precision Dual-Output | 30W Wide-Range DC-DC Power Module‌

Input/Output Full Compatibility: 3VAC~24VAC → ±3VAC/±5V/±9V/±12V/±15V/±24V‌

Key Advantages‌

✅ ‌Wide Voltage Coverage‌: Supports 3VAC-24VAC input and outputs symmetrical ±3V to ±24V, meeting diverse power supply needs.
✅ ‌Dual Independent Outputs‌: Positive-negative dual-channel design ensures balanced power delivery, simplifying circuit layout and enhancing system stability.
✅ ‌30W High Efficiency‌: Advanced switching technology achieves up to 90% efficiency, with low heat generation for extended equipment lifespan.
✅ ‌Full Isolation Protection‌: Electrically isolated input/output provides strong noise immunity and safety, ideal for industrial and medical applications.
✅ ‌Flexible Topology‌: Buck/Boost architecture support ensures precise voltage regulation and low ripple output, perfect for sensitive instruments.

Typical Applications‌
Industrial Control‌: PLCs, sensor power supply
Medical Devices‌: Diagnostic equipment with dual voltage requirements
Lab Testing‌: Analog circuit power for ±V applications
Communication Systems‌: Baseband signal processing modules

Technical Specifications‌
Input Range‌: 3VAC-24VAC (full voltage compatibility)
Output Options‌: ±3V/±5V/±9V/±12V/±15V/±24V (30W peak)
Efficiency‌: ≥90%
Isolation Voltage‌: 1500VAC
Operating Temperature‌: -40℃ to +85℃
