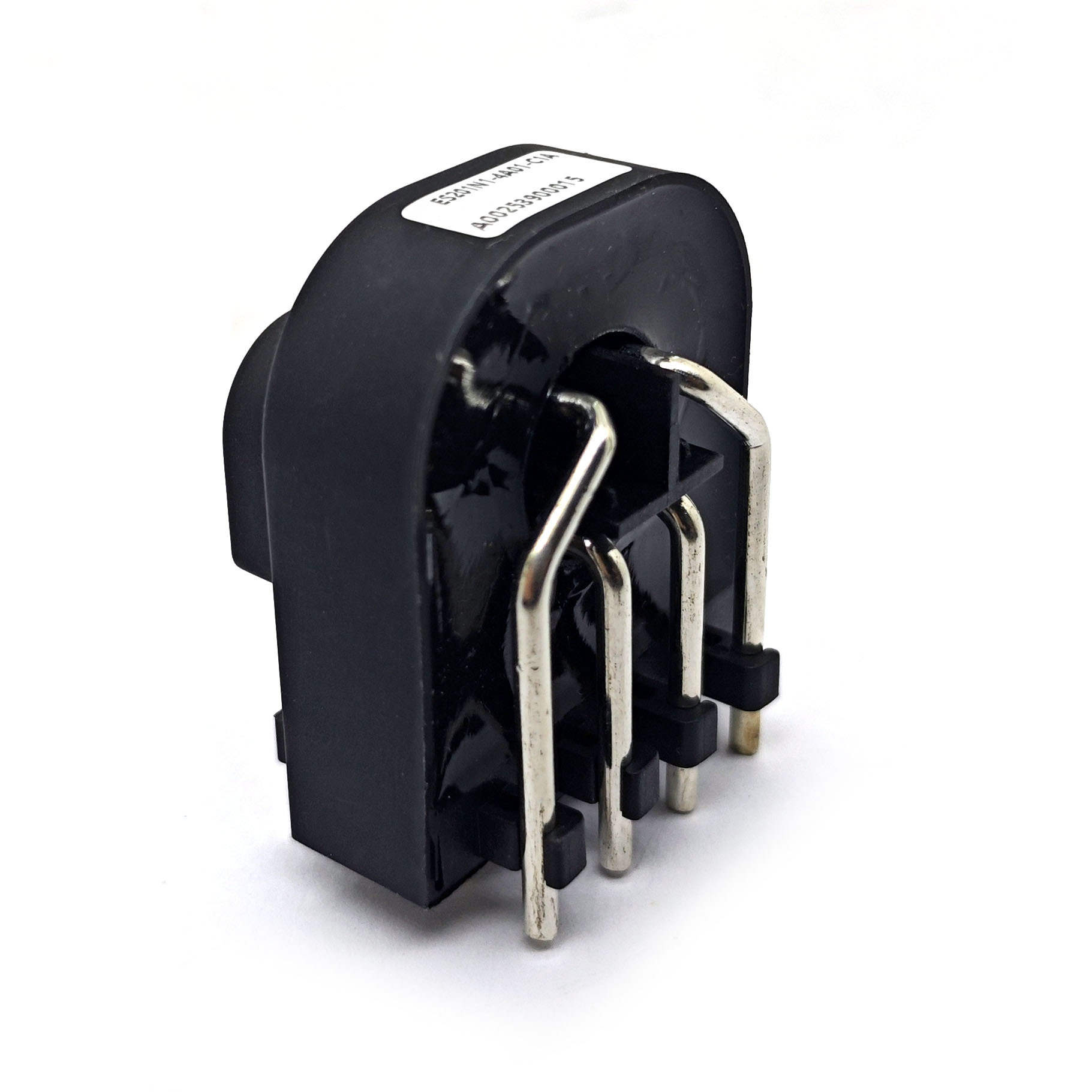

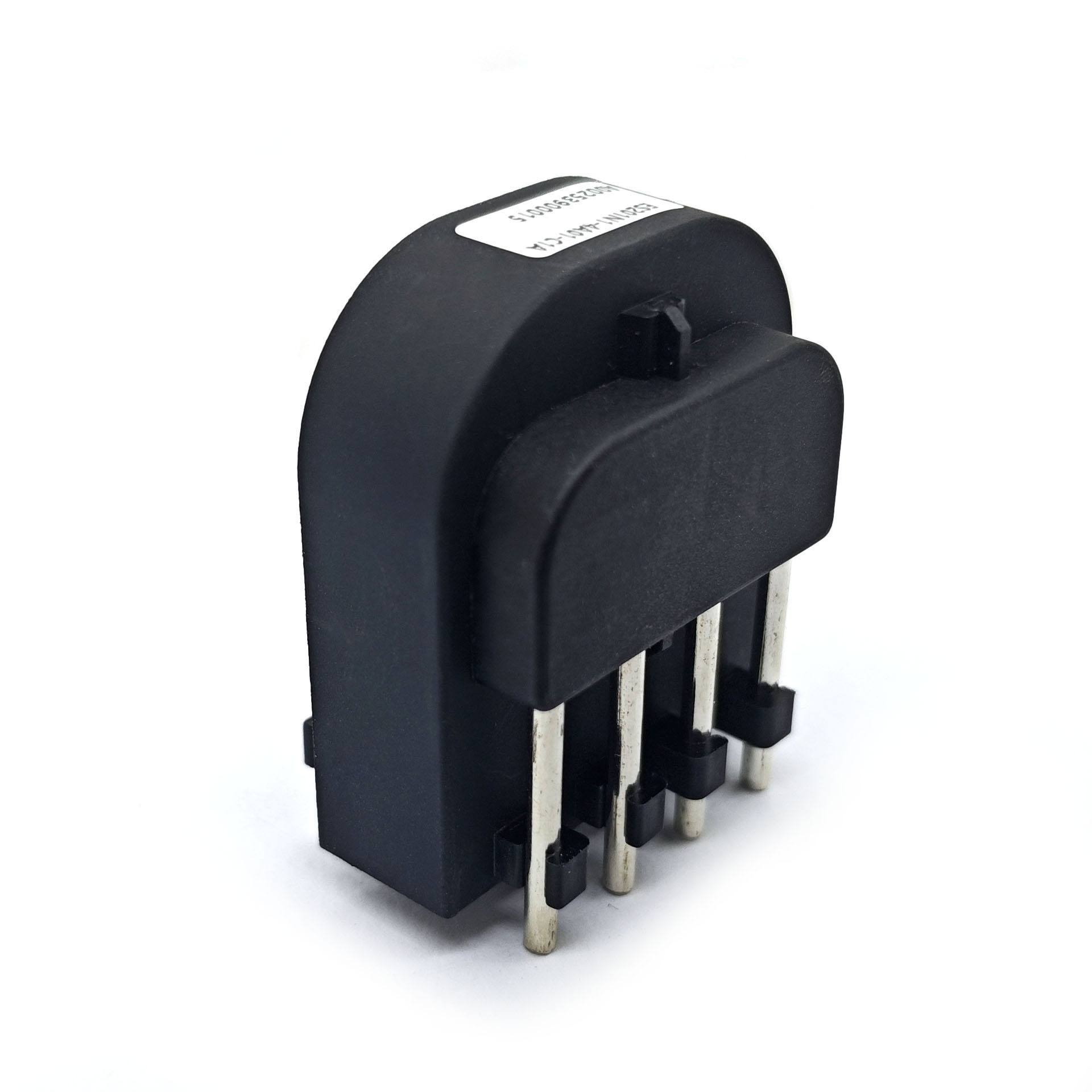

11KW And Below Residual Current Sensor for Wide Industrial Applications

Product Description:

ES201N1 series residual current sensor adopts flux gate technology and m ich can detect AC, pulsating DC, smooth DC, and high-frequency currents, achieve self check function and logical judgment, and meet the requirements of A+6 and B residual current protection. The product is widely used in new national, European, and American standards for electric vehicle charging facilities, portable charging(IC-CPD), WallBox, AC charging piles, etc.

Execution standards
IEC62955 IEC62752 IEC62423 IEC61851 IEC61008 GB/T22794 GB/T40820 GB/T18487 GB/T41589 UL2231-2

Product features

• Self inspection function, PCB installation, high precision, small size, digital signal output, meeting A+6 or B type requirements
• Dimensions: 40 x 26 x 45mm
• Supply Voltage: 5V DC
• Max current:     32A
• Scope of Application: 11KW and Below

Overall, our Leakage Current Sensor is a reliable and efficient solution for detecting and monitoring residual currents in electrical systems. With its compact design, versatile application scope, and advanced protective features, this sensor offers peace of mind and assurance in various electrical setups. Invest in our Leakage Current Sensor today to enhance safety, prevent hazards, and optimize the performance of your electrical infrastructure.

Technical Parameters:

Applications:

The SHINHOM ES201 Residual Current Sensor is a high-quality product designed to accurately detect and monitor leakage currents in various applications. With its origin in China, this sensor holds the prestigious ISO9001 certification, ensuring its reliability and performance.

Equipped with a protect type of Type B or A+6mA/DC, the ES201 sensor is capable of efficiently detecting residual currents while operating within a wide temperature range of -40°C to 85°C. This current sensor is specifically designed to work with a supply voltage of 5V DC, making it suitable for a variety of electrical systems.

The versatile nature of the SHINHOM ES201 makes it ideal for a range of product application occasions and scenarios. It is particularly well-suited for use in systems with a power consumption of 7KW and below, providing essential protection against leakage currents and ensuring the safety of electrical installations.

Whether it is in industrial settings, commercial buildings, or residential areas, the ES201 residual current sensor plays a crucial role in preventing electrical hazards by promptly detecting any abnormal currents. Its precision and reliability make it a valuable asset in maintaining the safety and efficiency of electrical systems.

In summary, the SHINHOM ES201 Residual Current Sensor is a dependable solution for detecting leakage currents in various applications. Its Type B or A+6mA/DC protect type, wide operating temperature range, and compatibility with 5V DC supply voltage make it a versatile and essential component for ensuring electrical safety and protection.
